| ITEM
TYPE |
厚度THICKNESS(MIO) | 克重比RATION/YIELD | ||
| 总厚度 Total Thickness |
厚度误差 Thickness Tolerance |
M2/kg | ||
| 亮光 GLOSSY |
17 | 17 | +/-1.5mic | 64 |
| 18 | 18 | 60.4 | ||
| 20 | 20 | 54.2 | ||
| 22 | 22 | 49.2 | ||
| 24 | 24 | 45.2 | ||
| 25 | 25 | 43.4 | ||
| 亚膜 MATT |
17 | 17 | 69.3 | |
| 18 | 18 | 65.1 | ||
| 20 | 20 | 58 | ||
| 22 | 22 | 52.3 | ||
| 24 | 24 | 48.5 | ||
| 25 | 25 | 46.4 | ||
| 宽度 WIDHT |
200m-1860mm(±5mm) | |||
| 长 度 LENGTH |
2000m,3000m,4000m,6000m,9000m,12000m,(200m,300m for 1″core) | |||
| 纸芯 PAPERCORE |
76mm(3”)25.4mm(1”) | |||
| 接头数 CONNECTOR |
≤2 | |||
| 电晕处理 CORONATREATMENT |
Double side | |||
| 表面张力 SURFACE TENSION |
BOPP SIDE≥38 dyne,EVA SIDE≥42 dyne | |||
| 使用指南APPLICATION MUNAL | ||||
| 覆膜温度COMPOUND TEMPERATURE | 80-110℃(185-230F) | |||
| 覆膜压力COMPOUND PRESSURE | 5-25mpa | |||
| 覆膜速度COMPOUND SPEED | 5-60m/min | |||

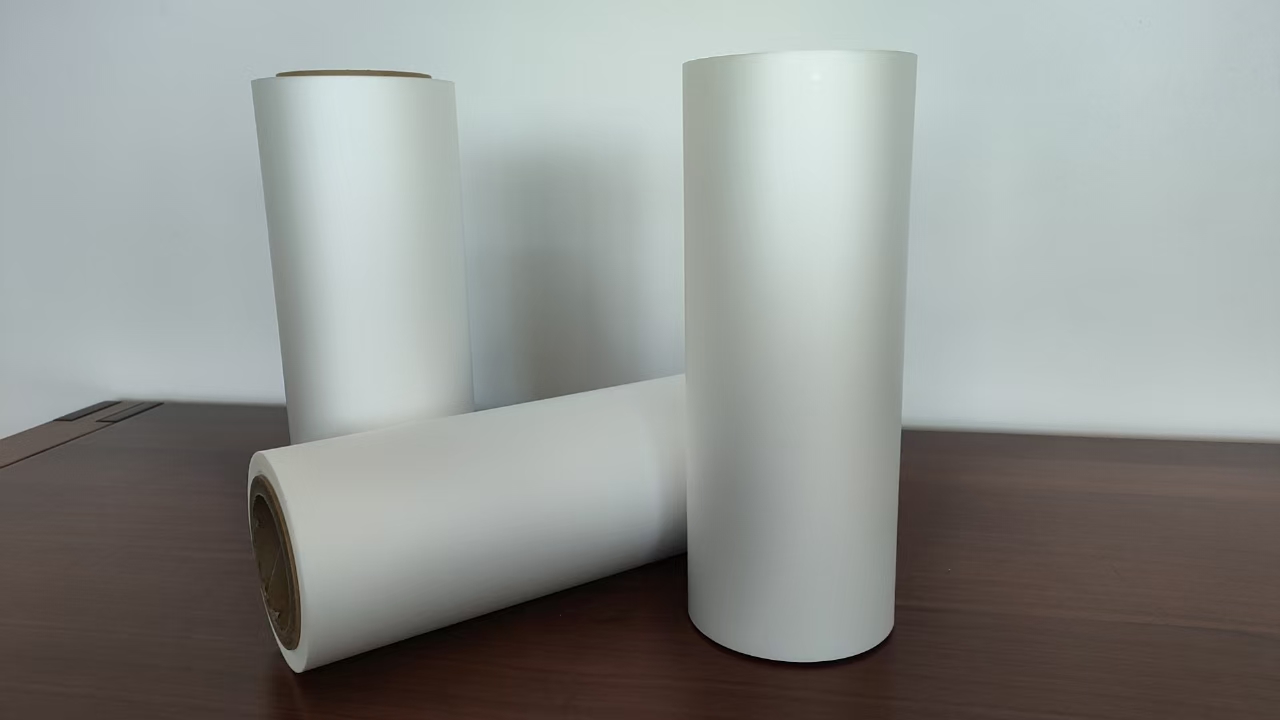

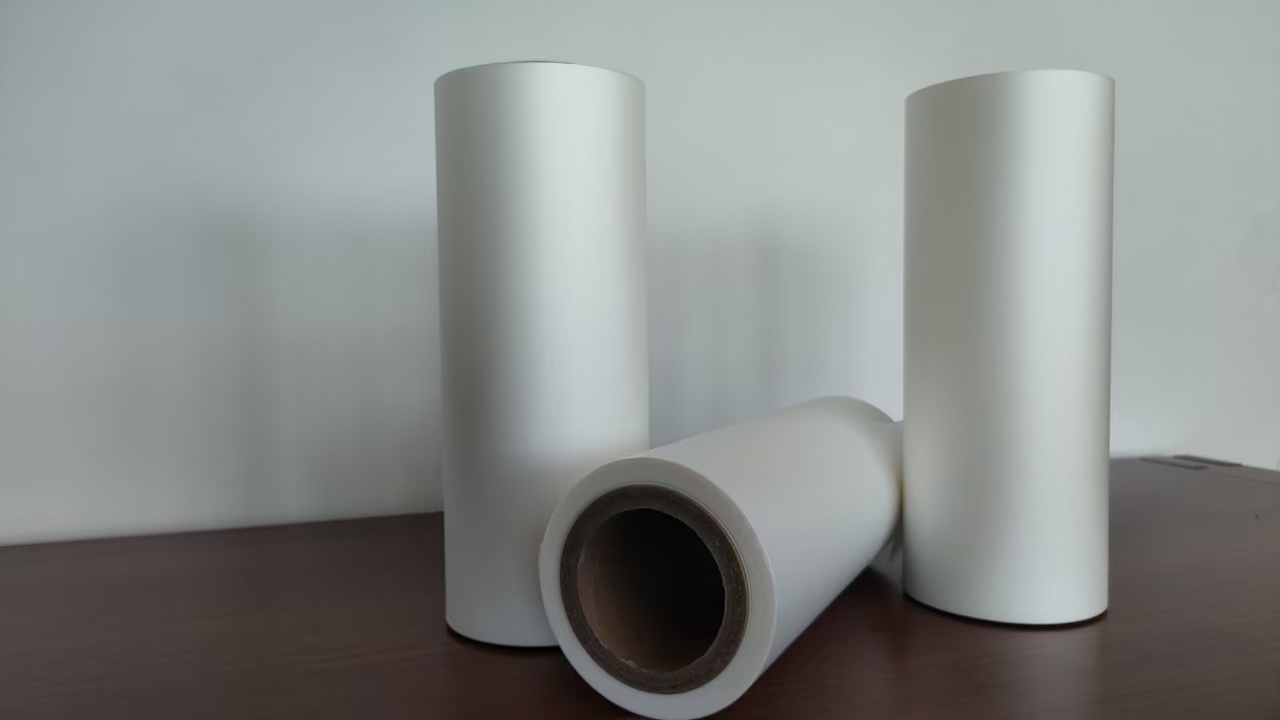

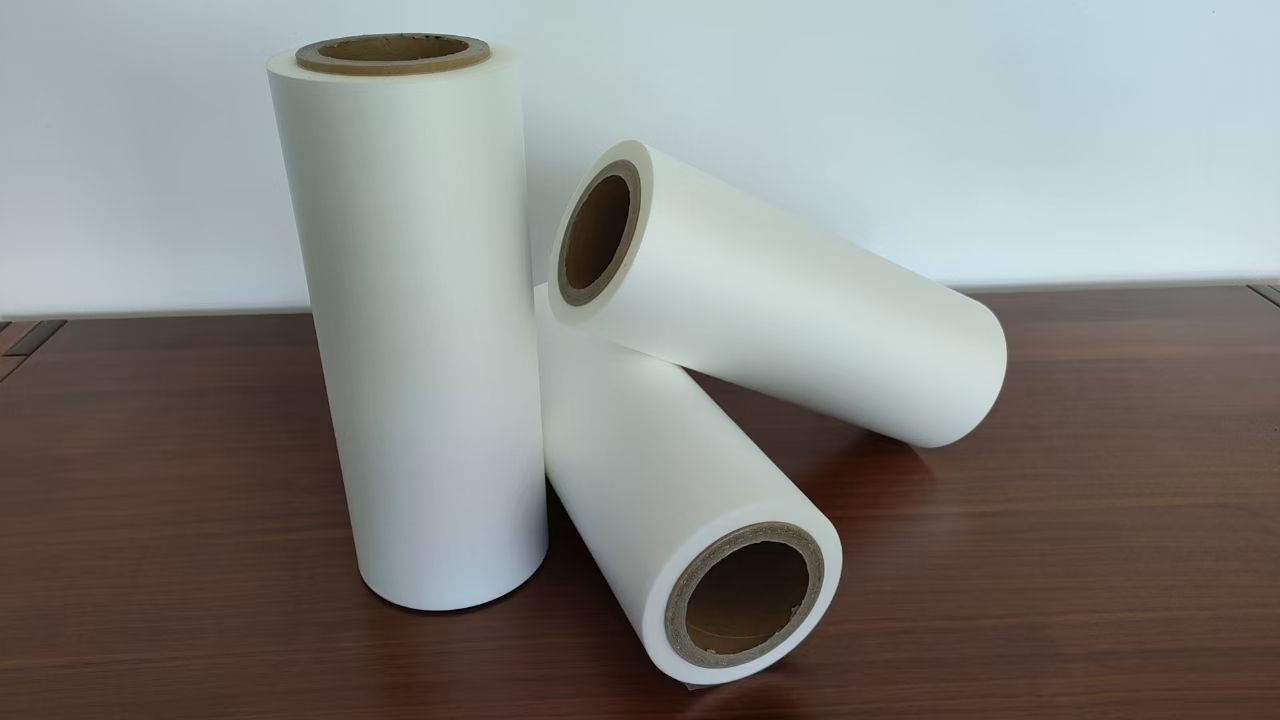

Bopp Thermal Lamination film
20mic bopp thermal lamination matt film
manufactory of pure white Bopp per coating lamination film with competitive price 17mic 18mic 20mic 22mic all avalilable
| 17mic | 1111111 |
|---|---|
| 18 | 222222 |
| 19 | 33333 |
